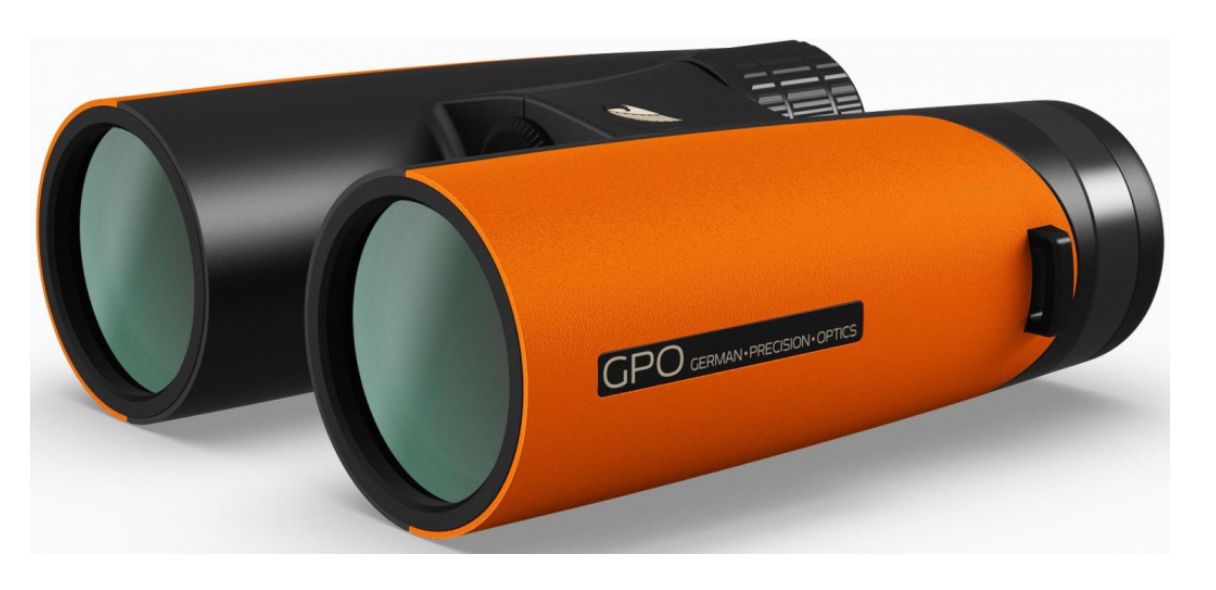

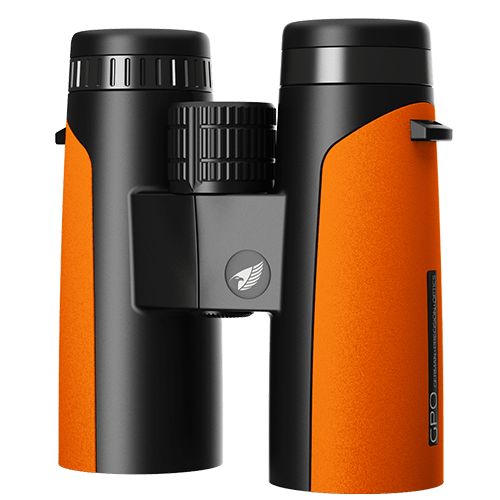

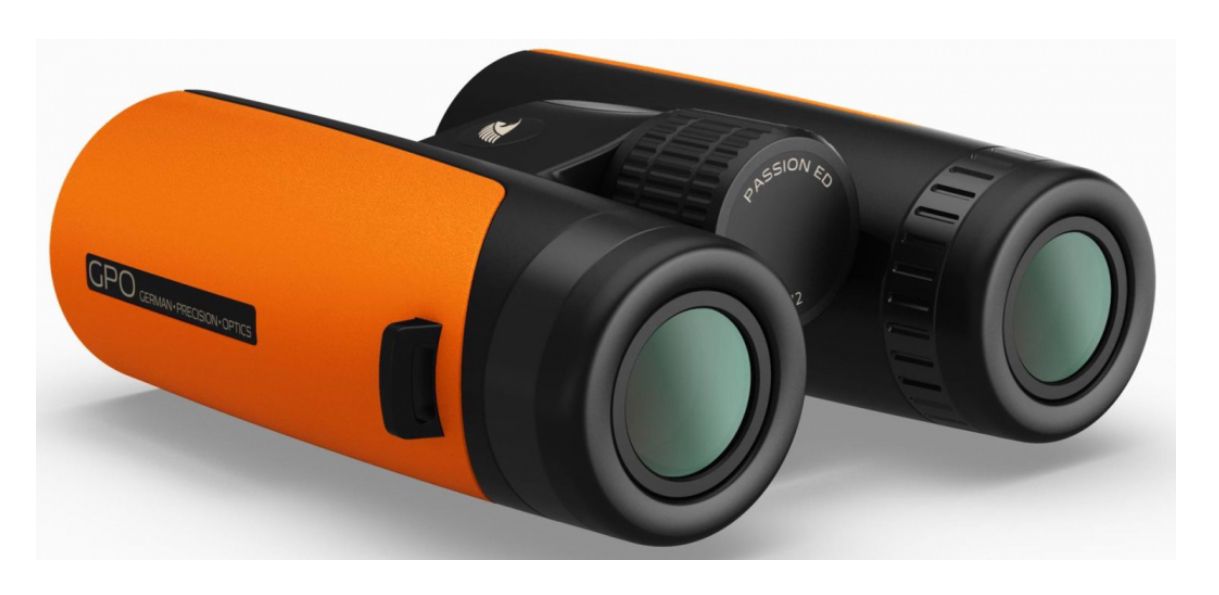

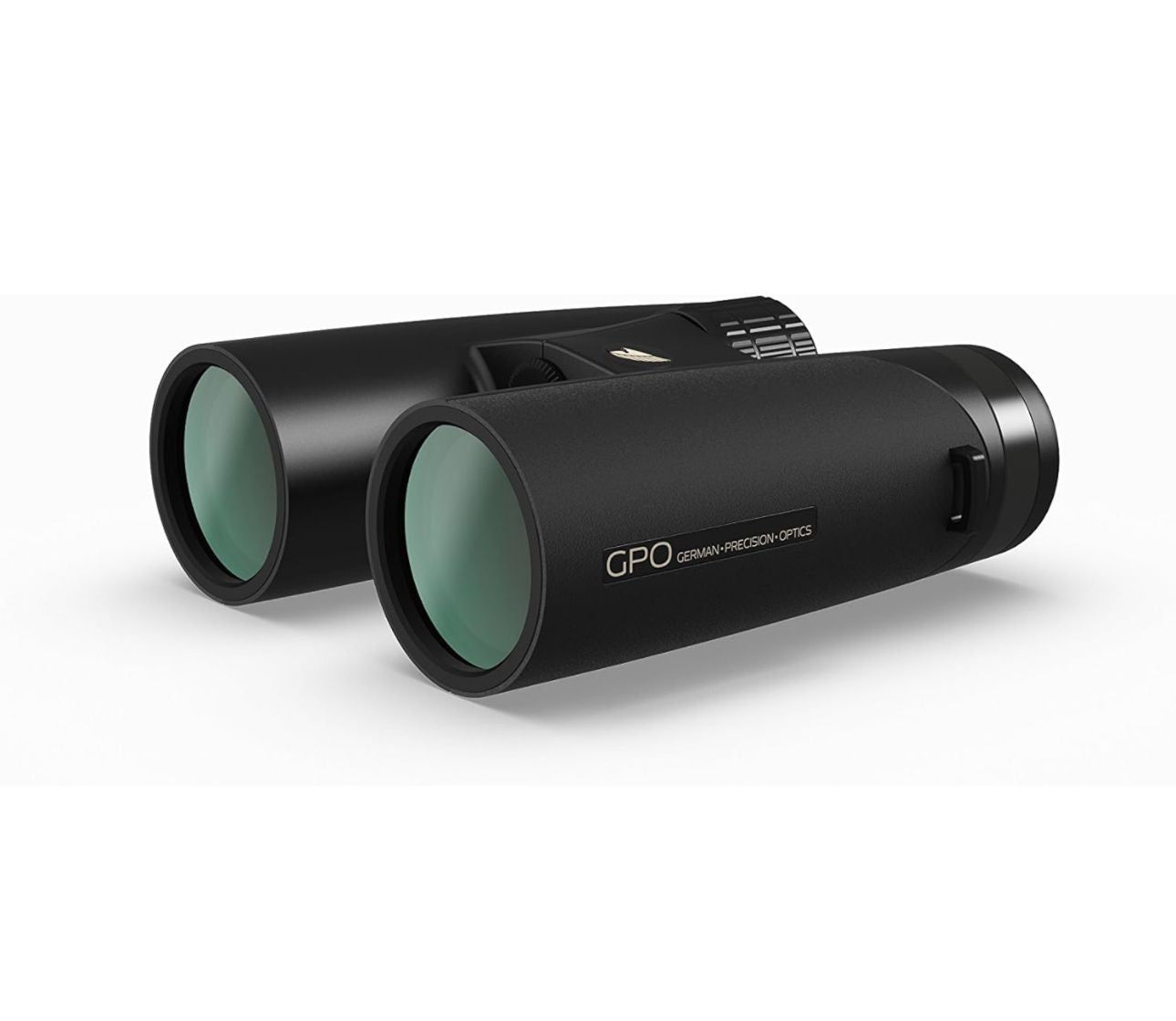

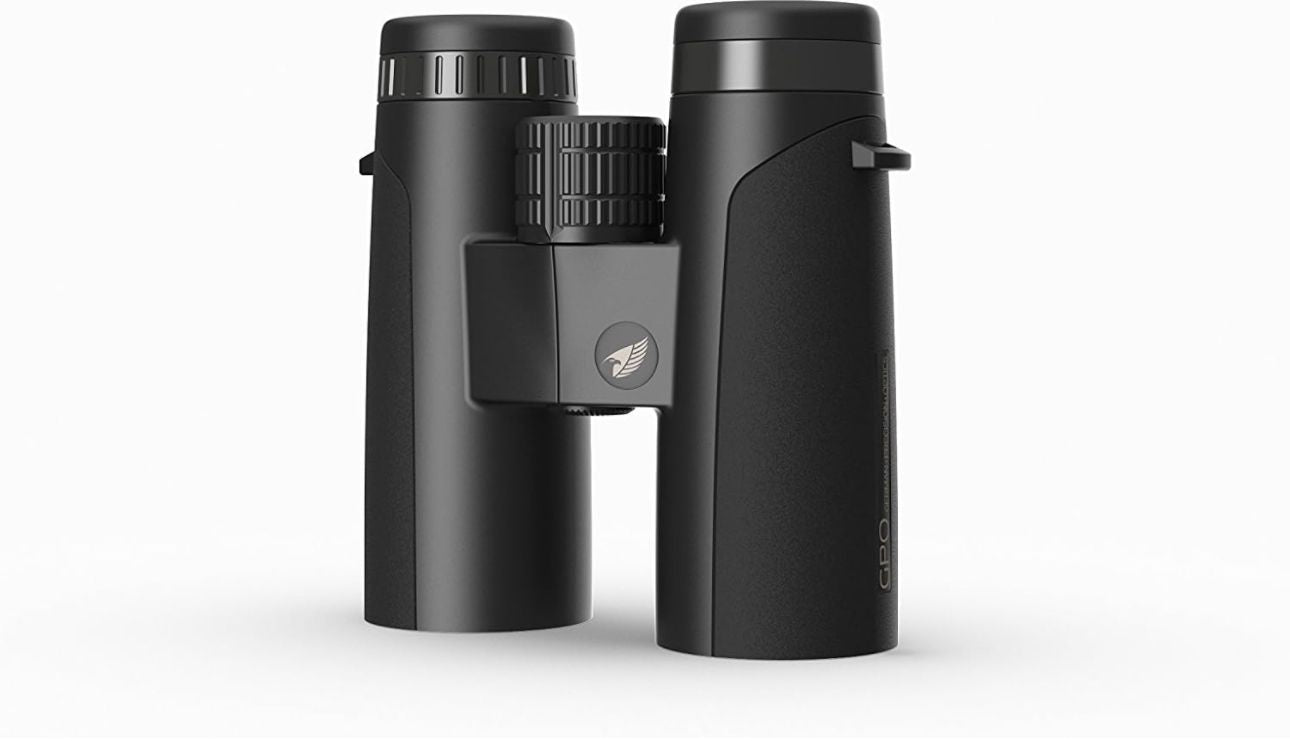

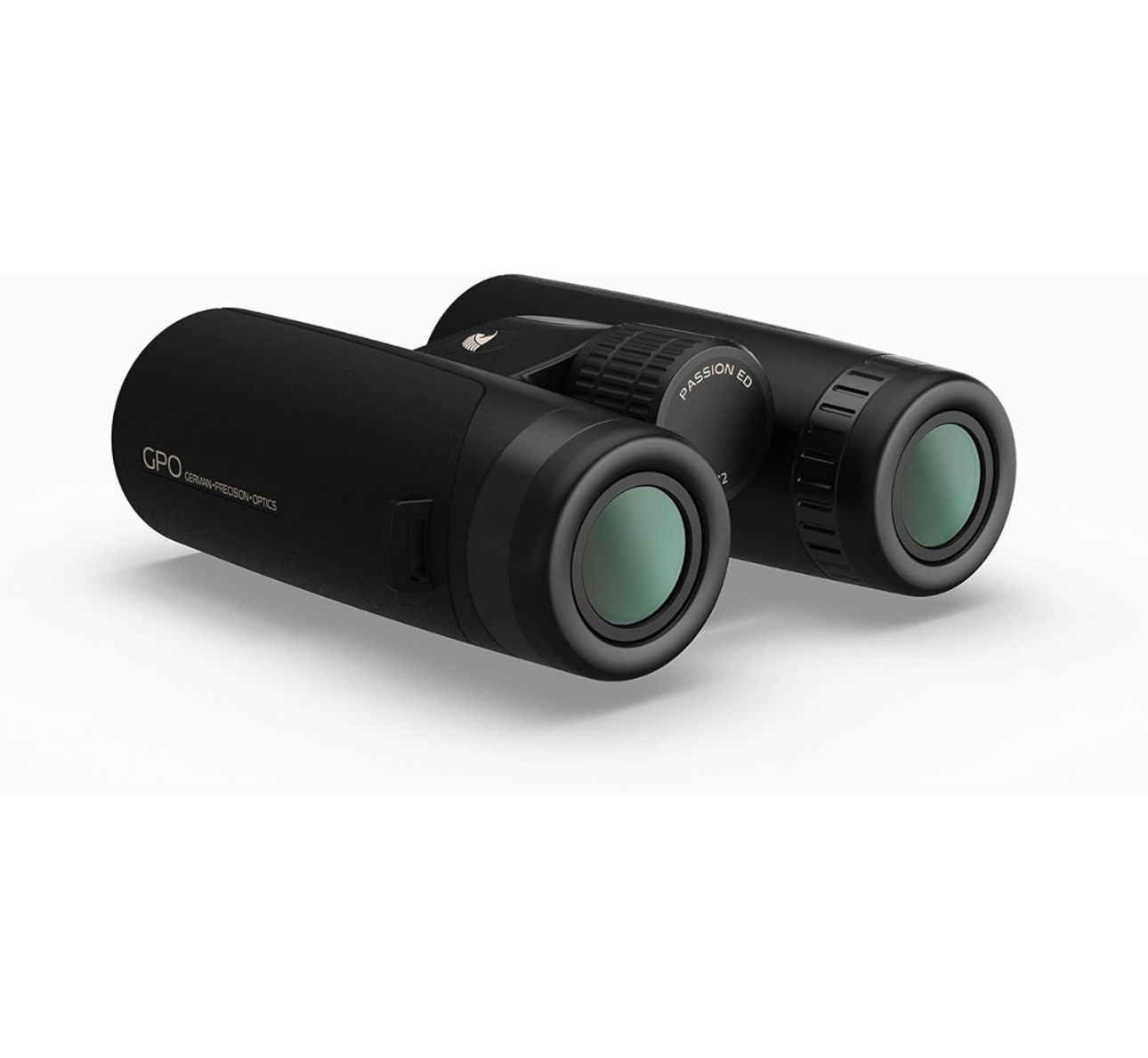

GPO 10x42

Prism type

.

Schmidt-Pechan

Magnification

.

10x

Field of view (FOV) at 1.000y

.

342

Field of view (FOV) at 1.000m

.

114

Objective diameter (mm)

Effective diameter

42

Ocular diameter (mm)

Effective diameter

23,7

Exit pupil diameter (mm)

Measurement of the pupilary ocular beam

4,2

Eye Relief (inches)

From the last optical surface

0,63

Eye Relief (mm)

From the last optical surface

16

Housing

Main body and hinge

magnesium

Close focus (feet)

Shortest focal distance

6,6

Close focus (meters)

Shortest focal distance

2

Inter pupilary distance (IPD)

Center pupil to center pupil measurement

56 – 75

Dioptric compensation range

.

-2,5/+2,5

Waterproof

Mbars

100

Transmission Daylight

ISO 14490-5:2005

90%

Height (inches)

Without covers

2,2

Height (mm)

Without covers

55

Weight (ounces)

Without covers

25,5

Weight (grams)

Without covers

725

Lentgh (inches)

At outside diameter

5,4

Lentgh (mm)

At outside diameter

138

Width (inches)

Fully extended

5

Width (mm)

Fully extended

127

Accessories included with the purchase

.

instruction manual, cleaning cloth, hard

case, neoprene neck strap, hard case

strap, objective covers, ocular covers
