GPO 8x56

Prism type

.

Abbe-König

Magnification

.

8x

Field of view (FOV) at 1.000y

.

386

Field of view (FOV) at 1.000m

.

129

Objective diameter (mm)

Effective diameter

56

Ocular diameter (mm)

Effective diameter

23,7

Exit pupil diameter (mm)

Measurement of the pupilary ocular beam

7

Eye Relief (inches)

From the last optical surface

0,7

Eye Relief (mm)

From the last optical surface

20

Housing

Main body and hinge

magnesium

Close focus (feet)

Shortest focal distance

7,5

Close focus (meters)

Shortest focal distance

2,3

Inter pupilary distance (IPD)

Center pupil to center pupil measurement

57 – 75

Dioptric compensation range

.

-2,5/+2,5

Waterproof

Mbars / cm

100

Transmission Daylight

ISO 14490-5:2005

92%

Height (inches)

Without covers

2,6

Height (mm)

Without covers

67

Weight (ounces)

Without covers

.

Weight (grams)

Without covers

.

Lentgh (inches)

At outside diameter

7,5

Lentgh (mm)

At outside diameter

192

Width (inches)

Fully extended

6,2

Width (mm)

Fully extended

158

Accessories included with the purchase

.

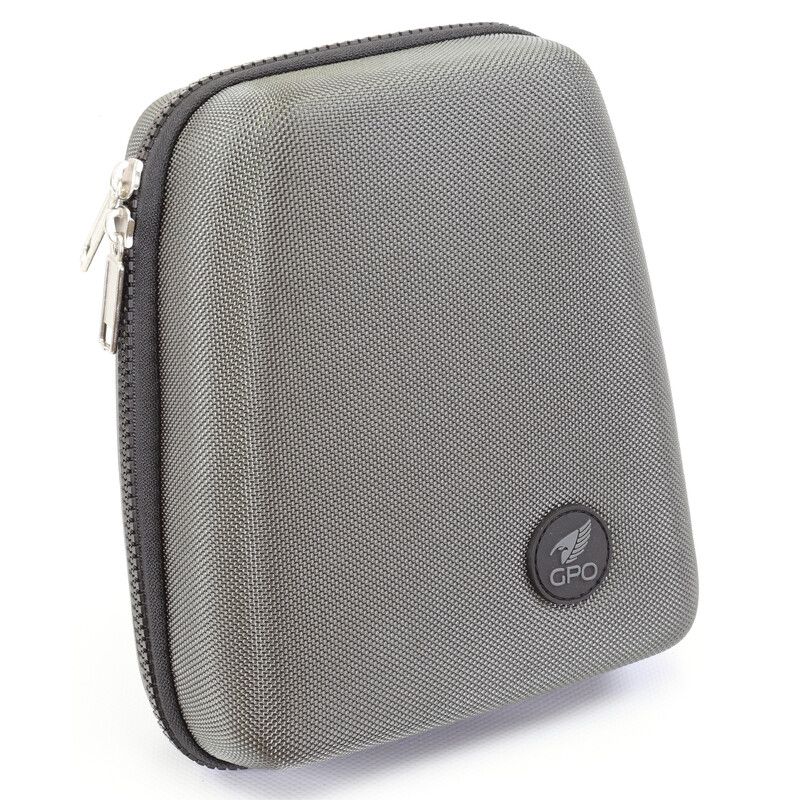

instruction manual, cleaning cloth, hard

case, neoprene neck strap, hard case

strap, objective covers, ocular covers
